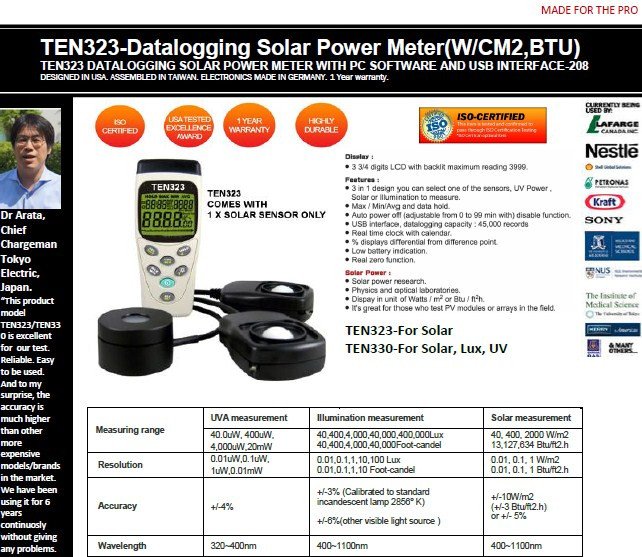

TEN323-Datalogging Solar Power Meter(W/CM2,BTU)


TEN323-For Solar

TEN330-For Solar, Lux, UV

Measuring range

UVA measurement

Illumination measurement

Solar measurement

40.0uW, 400uW,

4,000uW,20mW

40,400,4,000,40,000,400,000Lux

40,400,4,000,40,000Foot-candel

40, 400, 2000 W/m2

13,127,634 Btu/ft2.h

Resolution

0.01uW,0.1uW,

1uW,0.01mW

0.01,0.1,1,10,100 Lux

0.01,0.1,1,10 Foot-candel

0.01, 0.1, 1 W/m2

0.01, 0.1, 1 Btu/ft2.h

Accuracy

+/-4%

+/-3% (Calibrated to standard

incandescent lamp 2856º K)

+/-6%(other visible light source )

+/-10W/m2
(+/-3 Btu/ft2.h)

or +/- 5%

Wavelength

320~400nm

400~1100nm

400~1100nm

USB datalogger

45,000 records

Sample Time

4 tims per second.

Data Output

USB PC serial interface.

Power Supply

9V battery(NEDA 1604 IEC 6F 22 JIS 006P)

Battery life

approx. 100 hr.

Total Weight

approx. 1,200g

Accessories

Instruction manual.

9V battery(NEDA 1604 IEC 6F 22 JIS 006P)

Carrying case

UVA sensor probe.

Illumination sensor probe.

SOLAR sensor probe.

Sensor probe

Ø49 x 28(H) mm.

80(L) X 55(W)X25(H)mm.

80(L) X 55(W)X25(H)mm

Main instrument

130(L) x 55(W) x 38 (H)mm
