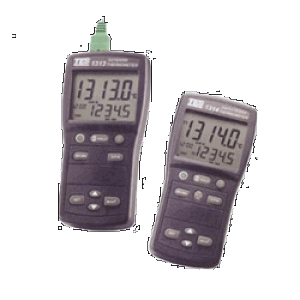

TES-13131/1314 K.J.T.E.R.S.N. Thermometer

Measuring Range

K - Type : -200℃ to +1372℃ (-328℉ to +2501℉)
J - Type : -210℃ to +1200℃ (-346℉ to +2192℉)
E - Type : -150℃ to +1000℃ (-238℉ to +1832℉)
T - Type : -250℃ to +400℃ (-418℉ to +752℉)
R and S - Type : 0℃ to +1767℃ (+32℉ to +3212℉)
N - Type : -200℃ to +1300℃ (-328℉ to +2372℉)

Display Resolution 0.1℃ / ℉ / K <2000°
1.0℃ / ℉ / K ≦2000°
Measurement Accuracy (According to ITS-90) K, J, E, T and N-Type : ±[0.05% of reading +0.3℃ (0.6℉)]
[below-100℃ (-148℉) : add 0.15 % of reading for K-, J-, E-, and N-Type ; and 0.45% of reading for T-Type]
R-and S-Type : ±[0.05% of reading + 0.4℃ (0.8℉)]
Temperature Coefficient 0.01% of reading + 0.03℃ per ℃ (0.05 ℉ per ℉) outside the specified +18℃ to 28℃ (+64℉ to +82℉) range
[LCD ranging : below –100℃ (-148℉) : add 0.04% of reading for K-, J-, E, and N- Type; and 0.08% of reading for T- Type]
Maximum Differential Common Mode Voltage 1V (Maximum voltage difference between T1 and T2)
Input Protection 30V maximum input voltage on any
Combination of input Connector
Sampling Rate 1 time/sec
Operating/Storage Conditions 0 ℃ ~ 40 ℃< 80% RH
–10 ℃ ~ 60 ℃< 70% RH
Power Source 6 pcs size AAA Battery
Battery Life Approx. 300hours. (not including backlight and beeper)
Size 152(L) ×72(W) ×37(H)mm
Weight Approx. 300g
Accessories Instruction manual, Battery
