Data Creation System Delivers 90% Faster Data Generation, 93% Lower Line Stoppage Times

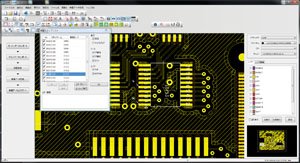

The UA1780 enables high-quality test programs in a short period of time by using net information that has been reverse-generated from Gerber data and component information libraries, and delivers maximum performance when used in conjunction with Hioki’s new FA1240-50 flying probe tester.
• No need for camera-based teaching
• No need to visually trace patterns under components
• Easy generation of high-quality test data without boards
• Support for the new FA1240 data format
■ Specifications overview
Included | Install CD, license key (USB), instruction manual (× 1 each) *Caution: Computer, monitor, and other hardware not included. |
---|---|
Gerber data input functions | Loading of Gerber files (RS-274X, RS-274D), aperture files, and drill files |
Mount data input functions | Loading of CSV files containing circuit names, layout coordinates, angles of rotation, shape names, and component names Support for operations such as rotation and mirroring, and display of data such as mounting locations |
Graphic editing functions | Copying, movement, deletion, and other manipulation of figures |
Component library registration functions | Registration of component list displays and component size, height, and pin numbers; registration of test pin pairs, test modes, ratings (thresholds), and upper and lower limit values; duplication of libraries |
Test data generation functions | Reverse net generation, test point extraction taking into account components and patterns, automatic movement of test points underneath components, generation of open tests between adjacent pads, etc. |
Test point confirmation functions | Display of test points on a graphical screen |
Test data output functions | FA1240-50 files, 1240/1114 files |
Data management functions | Saving of databases and management of component libraries |
